Phase advance calculation bug

[jyosk001]

Dear Didier,

For some reason, the phase advance charts for my linac do not seem to plot past z=57 m correctly. It might have something to with a ~short transport section that starts around there, but I'm not sure. What do you think is going on?

I have attached the phase advance plots below. I will send you my TraceWin project files separately.

Thanks,

Josh Y.

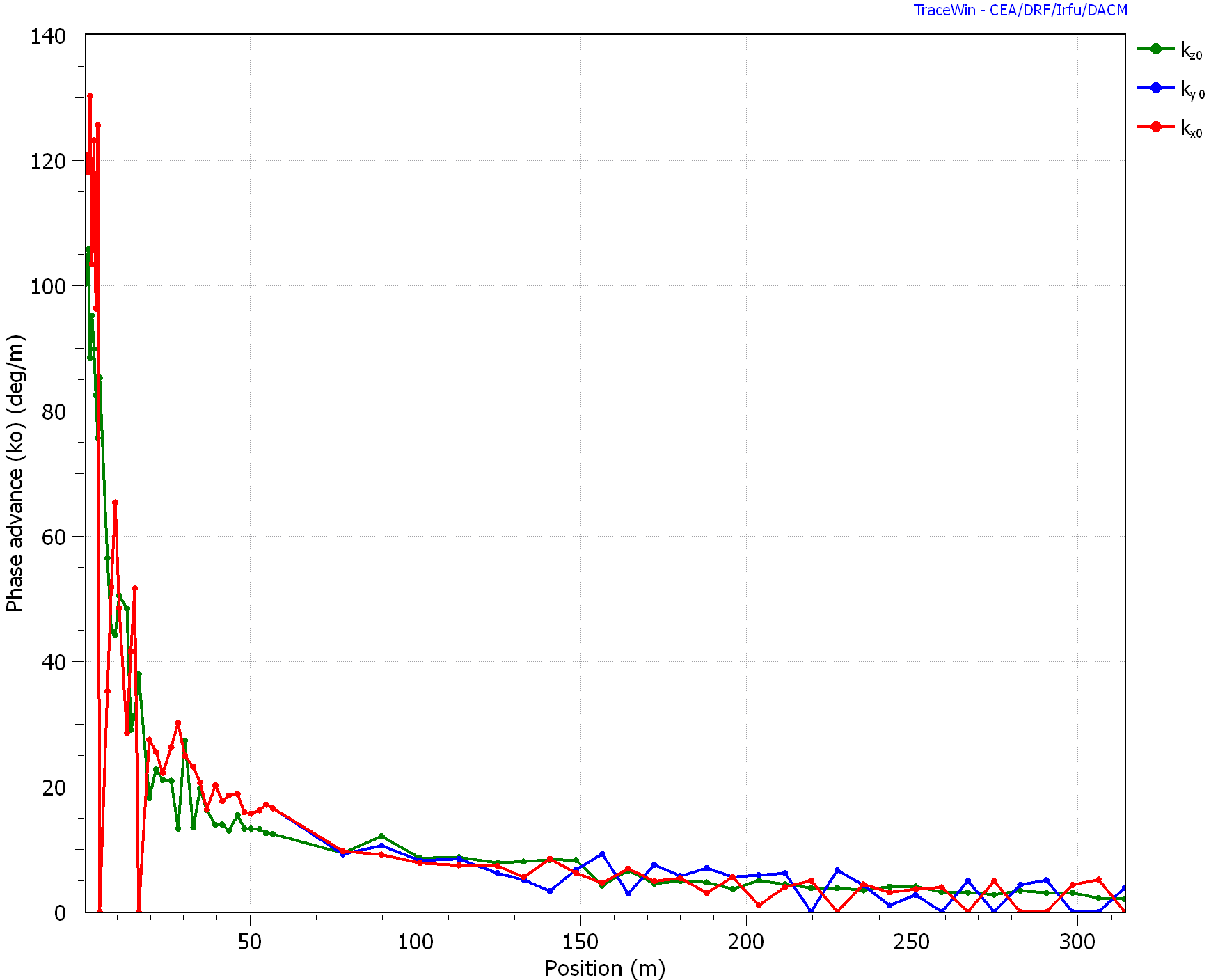

k0 vs position

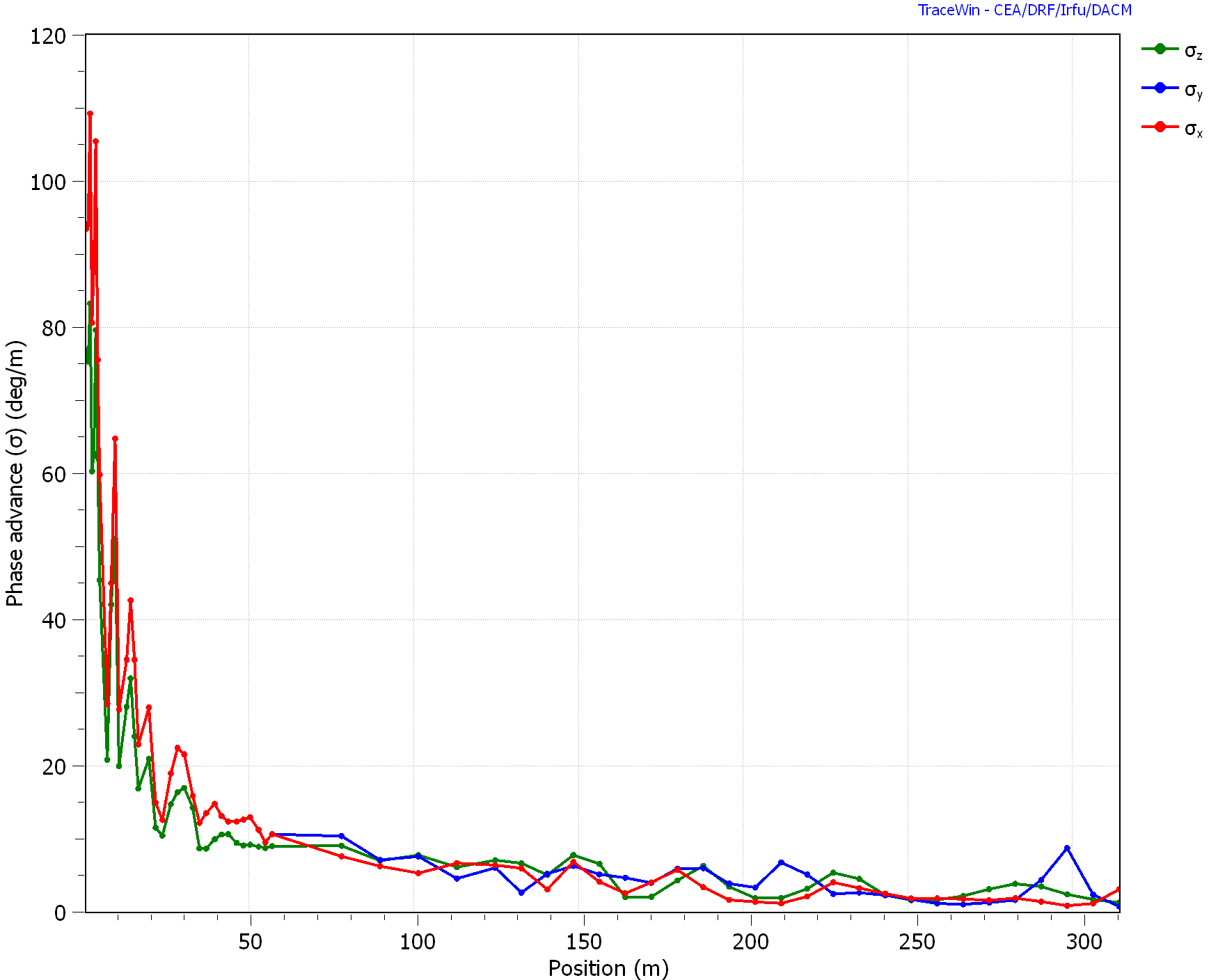

sigma vs position


[Didier]

Dear Josh,

Using your file I got following plots, that seems correct !

Regards,

Didier



[jyosk001]

Hi Didier,

I'm not sure how you got those charts. When I try to plot the deg/m phase advances (abscissa=meter, ordinate=meter, phase advance = structure or beam), I get the following plots. I've also attached the associated ascii files. Did you modify the files in some way to get them to plot correctly?

Thanks,

Josh



[Didier]

Dear Josh,

No I change nothing, please try to reload the code, perhaps I made some corrections without changing the version number and lets me know

Regards,

Didier

[jyosk001]

Dear Didier,

I tried deleting and redownloading the Tracewin.exe file...I guess it got corrupted somehow. I get the correct plots now.

Thanks!

Josh
