Combined Function dipole envelope

[NataliaM]

Hi all,

I am design transfer line for ESS and decided to try combined function dipoles and for that I created a new element and per instructions in the manual.
After quite some debugging I managed to get the transverse part of the code to agree pretty well with a quad (given the dipole is weak etc.). I am having a bit of trouble understanding the longitudinal envelopes though.

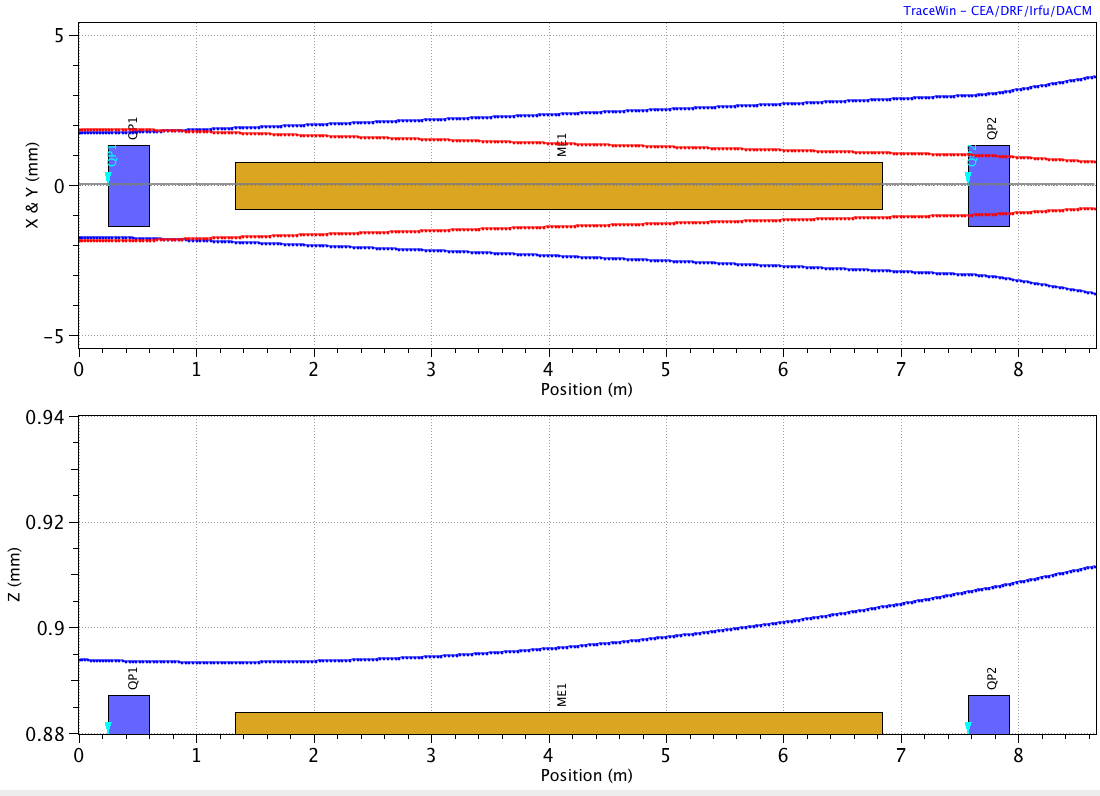

This is the envelope for the element I created

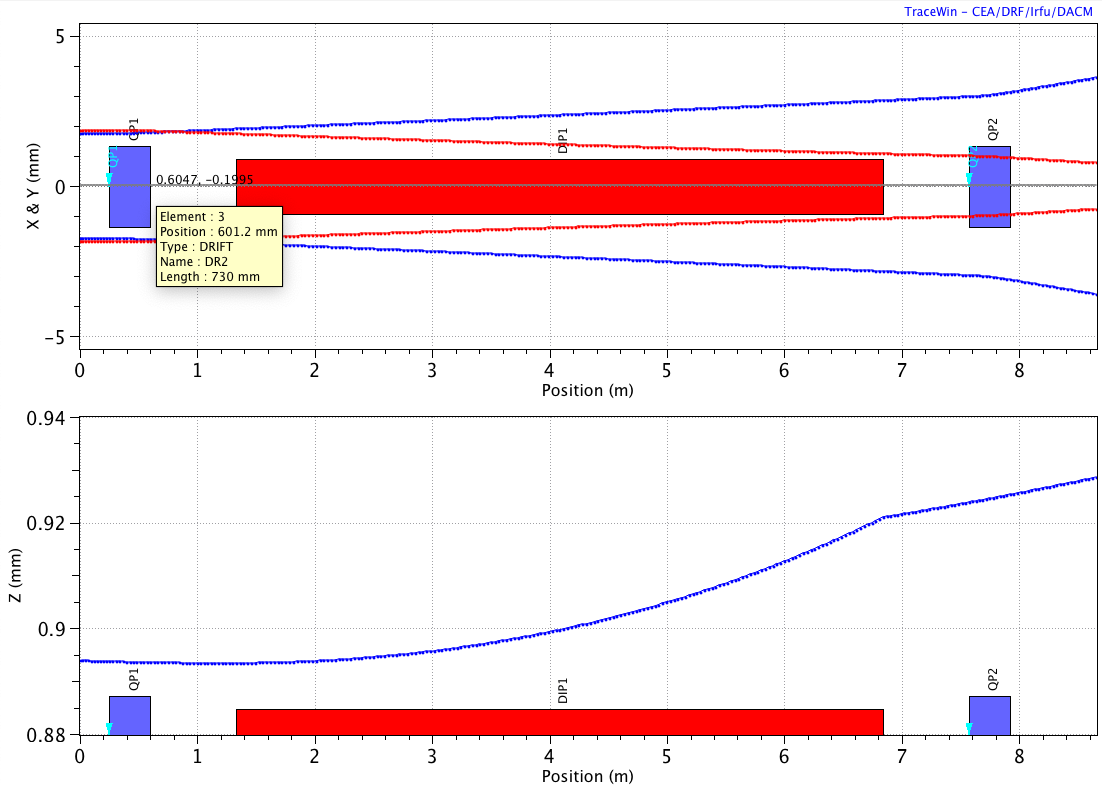

and this is what I get when I add a regular dipole instead ( I checked and I get the same result for adipose in the form of a multipole FM)


The effect on the Z coordinate is a lot stronger (which could well be some sign mistake in my element) but the kick at the end of the dipole I really cannot understand. I added the lattice and the code for my element in this post as well in case someone wants to take a look.

Best,
Natalia

[Didier]

Dear natalia,

Whether using envelope or tracking, we have exactly the same behaviour at the dipole exit. However, the 2 methods are totally different, one is based on usual transfer matrix of the dipole, the other uses a geometric approach with no approximation. So I don't really know how to explain this kick, but I don't think it's wrong if you look at it quickly.
Otherwise, regarding your own development, the main.cpp file, it doesn't seem to work on my end.

Regards,

Didier
