I see some of the diagrams also depict both acceptance and input beam in longitudinal phase space, and I couldn't find the drawing method in the manual. May i ask how to draw that
- ScreenShot_2025-12-18_145015_205.png (104.04 KiB) Viewed 121 times
Beam acceptance picture
-
fengxinyuan - Beginner
- Posts: 9
- Joined: Tue 8 Dec 2020 02:34
- Country:
China (cn)
Beam acceptance picture
Post
by fengxinyuan »
Dear Didier:
I see some of the diagrams also depict both acceptance and input beam in longitudinal phase space, and I couldn't find the drawing method in the manual. May i ask how to draw that?
I see some of the diagrams also depict both acceptance and input beam in longitudinal phase space, and I couldn't find the drawing method in the manual. May i ask how to draw that?
-
fengxinyuan
- Beginner
- Posts: 9
- Joined: Tue 8 Dec 2020 02:34
- Country:
China (cn)
Re: Beam acceptance picture
Post
by fengxinyuan »

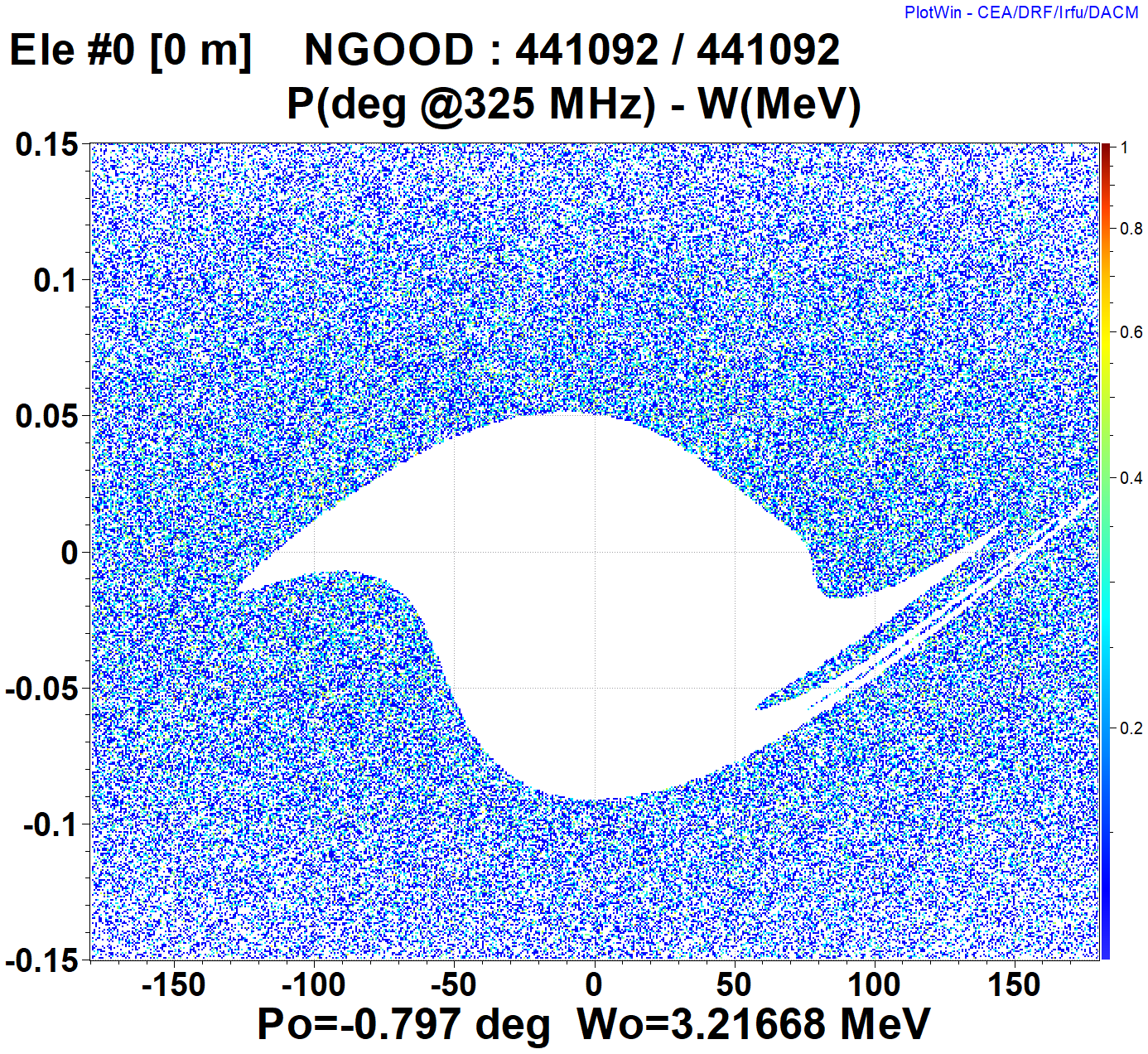

by this chapter, i can draw pictures like this.
but there cannot show input beam. How to add real beam into this acceptance? is copy the beam data into txt file?
- acceptance_example.png (201 KiB) Viewed 102 times
