Dear Sir,
I use field maps to learn beam optics in exact magnetic field of my element. I input dense data in the magetic field, so the calculation speed is low. I need to repeat my element several times. Twice is OK. However, if I let the beam pass through the same element 3 times, the software tells me that "Reference particle outside the field map, from [element]... from [calc]... ". I wonder what is the reason behind this errror. Maybe 3 elements needs a large amount of calculation. 3 elements are separate. Once the particle come out from one, it enters the next element. All particles are not lost in my element. Why is this error related to the reference paricle?
BTW, I find the field map is so fast and convenient. Could you please clarify the algorithm? Is it diffrential algebra or Lie algebra? If the mesh of my field is 1mm, what is the accuracy of my results?
Kind regards,
Jie Li
large field maps
Re: large field maps
Dear Jie,
I think it very difficult to help you with so little information. Could you send me your project including all the files so that I understand exactly what you are doing?
Regards,
Didier
I think it very difficult to help you with so little information. Could you send me your project including all the files so that I understand exactly what you are doing?
Regards,
Didier
Re: large field maps
Dear Didier,

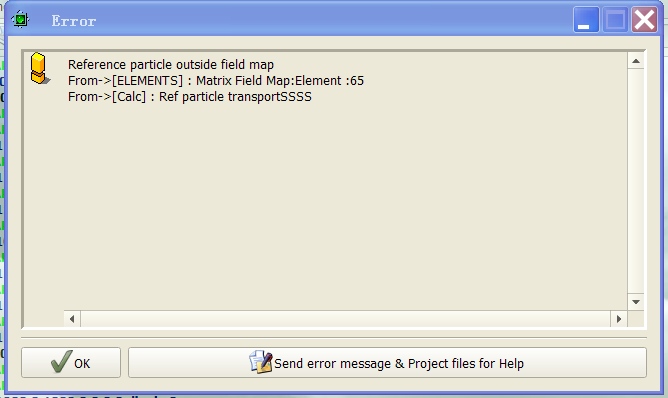

Just in my project, the file of field map is very dense. The mesh is 2mm. Focusing the last several lines in my code, if I repeat the same field map part 2 times, the result is OK. However, three times returns error. The function of each part is bending the beam 90 degree, while focusing or defocusing with mixed fields. The picture shows the error information. This problems makes frustrated for many days.
And I wonder the algorithm of the field map.I know it uses PIC. Is it based on differential algebra or Lie algebra? What is accuracy of the results if the mesh is 2 mm?
Thank you
With Regards
Jie Li
Just in my project, the file of field map is very dense. The mesh is 2mm. Focusing the last several lines in my code, if I repeat the same field map part 2 times, the result is OK. However, three times returns error. The function of each part is bending the beam 90 degree, while focusing or defocusing with mixed fields. The picture shows the error information. This problems makes frustrated for many days.
And I wonder the algorithm of the field map.I know it uses PIC. Is it based on differential algebra or Lie algebra? What is accuracy of the results if the mesh is 2 mm?
Thank you
With Regards
Jie Li
- Attachments
-
- error.png (26.41 KiB) Viewed 4078 times
-
- laserplasma.zip
- (32.82 MiB) Downloaded 242 times
Re: large field maps
Dear Jeili,
Fist, I strongly suggest you to tranform you file form ASCII to Binary format using Field_map tool from "chart" page. After that, simulation is 10 time faster and it's easier to try different configurations.
Secondly, I don't understand some points:
I will continue to look into this and discuss it with a colleague, I will keep you informed.
Regards,
Didier
I attach your modified project with binary field maps:
Fist, I strongly suggest you to tranform you file form ASCII to Binary format using Field_map tool from "chart" page. After that, simulation is 10 time faster and it's easier to try different configurations.
Secondly, I don't understand some points:
- What is the function of the "dipole" field map, I don't quite understand,
- Obviously the "drift" card can be removed, it doesn't seem to serve any purpose,
- Finally, do you have a scheme of what you want to simulate?
I will continue to look into this and discuss it with a colleague, I will keep you informed.
Regards,
Didier
I attach your modified project with binary field maps:
Re: large field maps
Dear Jeili,
Finally, I found the problem and it is fixed in the latest version of TraceWin available
Regards,
Didier
Finally, I found the problem and it is fixed in the latest version of TraceWin available
Regards,
Didier
Re: large field maps
Dear Didier,
Thanks for your detailed reply, which gives me much help indeed. According to your idea, my problem can be solved by the latest version of TraceWin.
Thank you
Kind Regards
Jie Li
Thanks for your detailed reply, which gives me much help indeed. According to your idea, my problem can be solved by the latest version of TraceWin.
- The elemet consists of two parts, entrance and exit. And then I want to repeat it 3 times.
- In the entrance, the mixed field maps are 2mm_D_CCT(bending), 2mm_L_CCT(focusing or defocusing in the left) and 2mm_R_CCT(focusing or defocusing in the right).
- In the exit, the mixed field maps are 2mm_D_CCT(bending), 2mm_L_CCT(focusing or defocusing in the left) and 2mm_R_CCT(focusing or defocusing in the right).
- There is a drift between the entrance and the exit. Maybe the drift is not necessary to claim in my file.
- As for the dipole, I want to provide a steerer for my particle. I know this part can be done by your defied element 'steerer' now.
- Could you please tell the algorithm and accuracy of the field map?
- And I do not know how the reference orbit is determined. Is it the arc linking the exit and entrance which also meets the tangent angle requirement of the exit?
- Are you sure that the version 2.18.01 is OK for my code? If so, maybe I need to buy this software right now.
Thank you
Kind Regards
Jie Li
Re: large field maps
Dear JieLi,
For the field map, a quadratic interpolator is used and particle movement is provided by Runge-Kutta methods. The accuracy is therefore normally very good but may obviously depend on the mesh size of your field map.
I confirm that using a dipole field map for steering is a very bad idea.

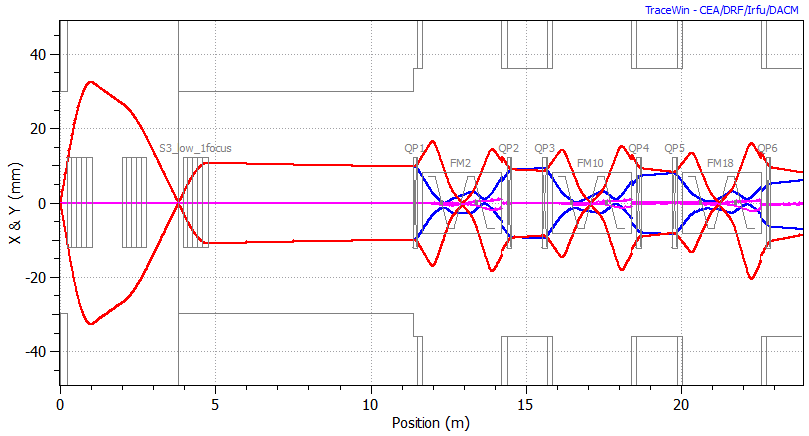

Yes, I confirm that the latest version is able to simulate your example, see the image below.
But, I put today, a new version : 2.18.0.2, cocnerning another issue but including some minor improvements contributing to your problem.
Last point, I don't understand your remark about buying the code! Normally, you already have a licence, if you are able to perform this kind of simulation, right? And if so, you can update freely since your licence is still valid.
Regards,
Didier
For the field map, a quadratic interpolator is used and particle movement is provided by Runge-Kutta methods. The accuracy is therefore normally very good but may obviously depend on the mesh size of your field map.
I confirm that using a dipole field map for steering is a very bad idea.
Yes, I confirm that the latest version is able to simulate your example, see the image below.
But, I put today, a new version : 2.18.0.2, cocnerning another issue but including some minor improvements contributing to your problem.
Last point, I don't understand your remark about buying the code! Normally, you already have a licence, if you are able to perform this kind of simulation, right? And if so, you can update freely since your licence is still valid.
Regards,
Didier
Re: large field maps
Dear Didier,
Your answer gives me much confidence for my work. Indeed tracewin is a powerful tool for simulating beam dynamics.I will appeal to more colleages to buy and use it. To be honest, I have learned beam physics for just 9 months. Now I just ask another person who have bought it to run my code and he returns the results. Sorry for infringing on your copyright. I do not have the right to use this software now. But I decide to communicate with my tutor to have a licensed one.
Thank you
With Regards
Jie Li
Your answer gives me much confidence for my work. Indeed tracewin is a powerful tool for simulating beam dynamics.I will appeal to more colleages to buy and use it. To be honest, I have learned beam physics for just 9 months. Now I just ask another person who have bought it to run my code and he returns the results. Sorry for infringing on your copyright. I do not have the right to use this software now. But I decide to communicate with my tutor to have a licensed one.
Thank you
With Regards
Jie Li
Re: large field maps
Dear Jie Li,
Ok, no problem.
Didier
Ok, no problem.
Didier
