Dose the envelope contain the dispersion effect?

Post by ChinaZhaoliangchao »

Dear Didier,

When I plot the beam envelope in 'Envelope' mode, it looks like the envelope does not contain the dispersion effect. But in 'Partran' mode, the dispersion effect is shown in the envelope.

So, does the envelope contain the dispersion effect (in "Envelope" mode) ?Or, how to enable it?
Attachments
line1.dat
(859 Bytes) Downloaded 360 times
line1.ini
(43.77 KiB) Downloaded 365 times

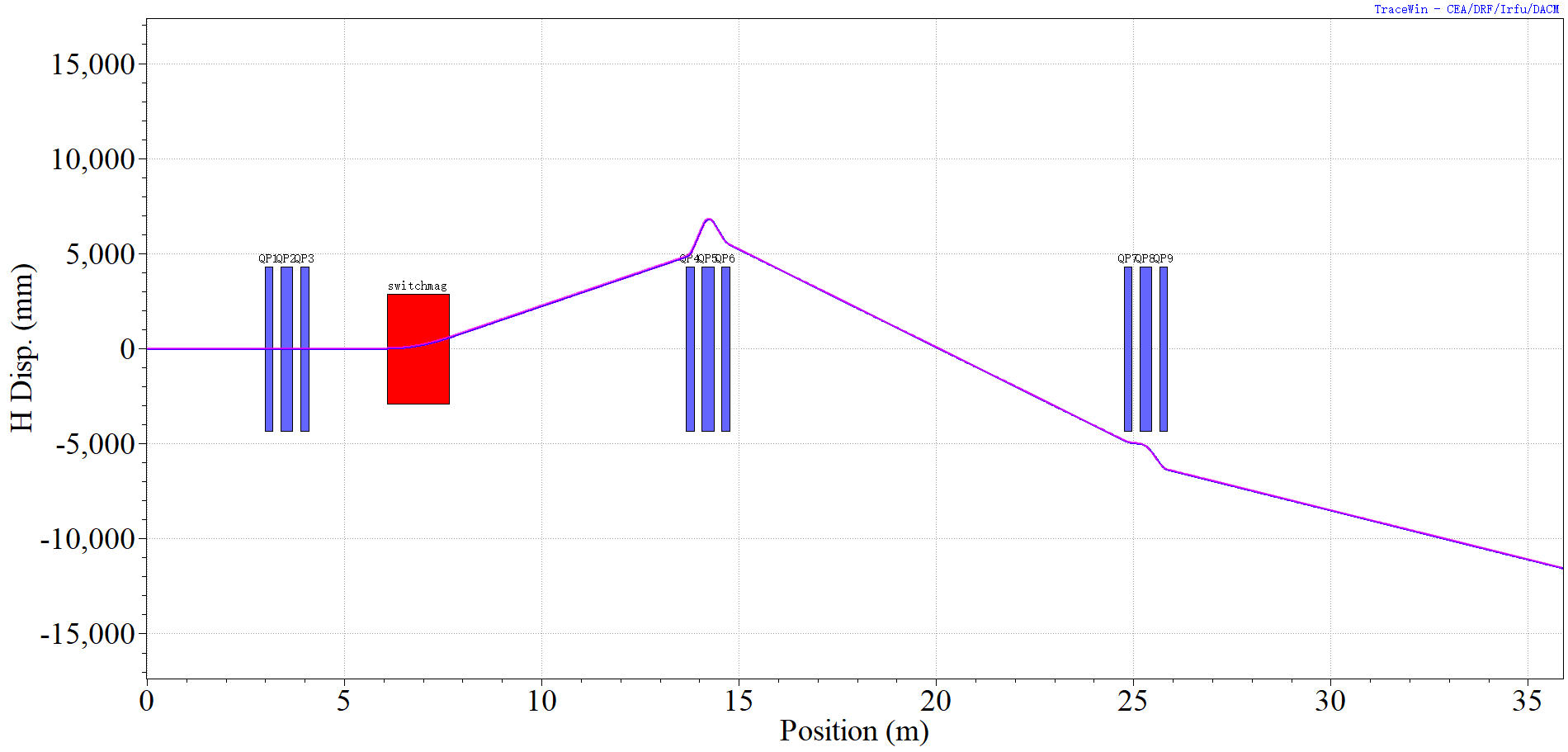

dispersion function.png
dispersion function.png (39.01 KiB) Viewed 6590 times

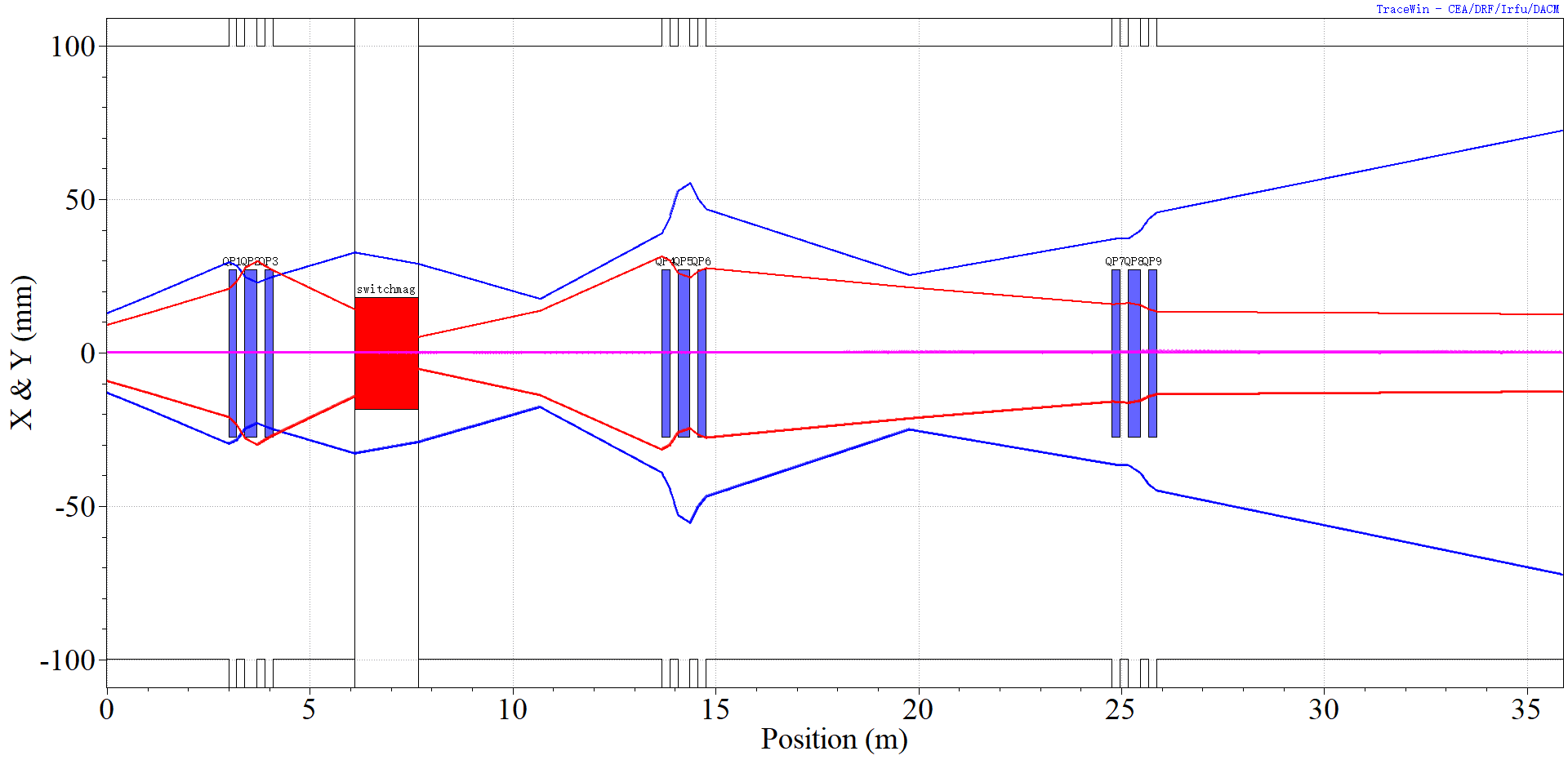

plot in partran mode.png
plot in partran mode.png (53.99 KiB) Viewed 6590 times

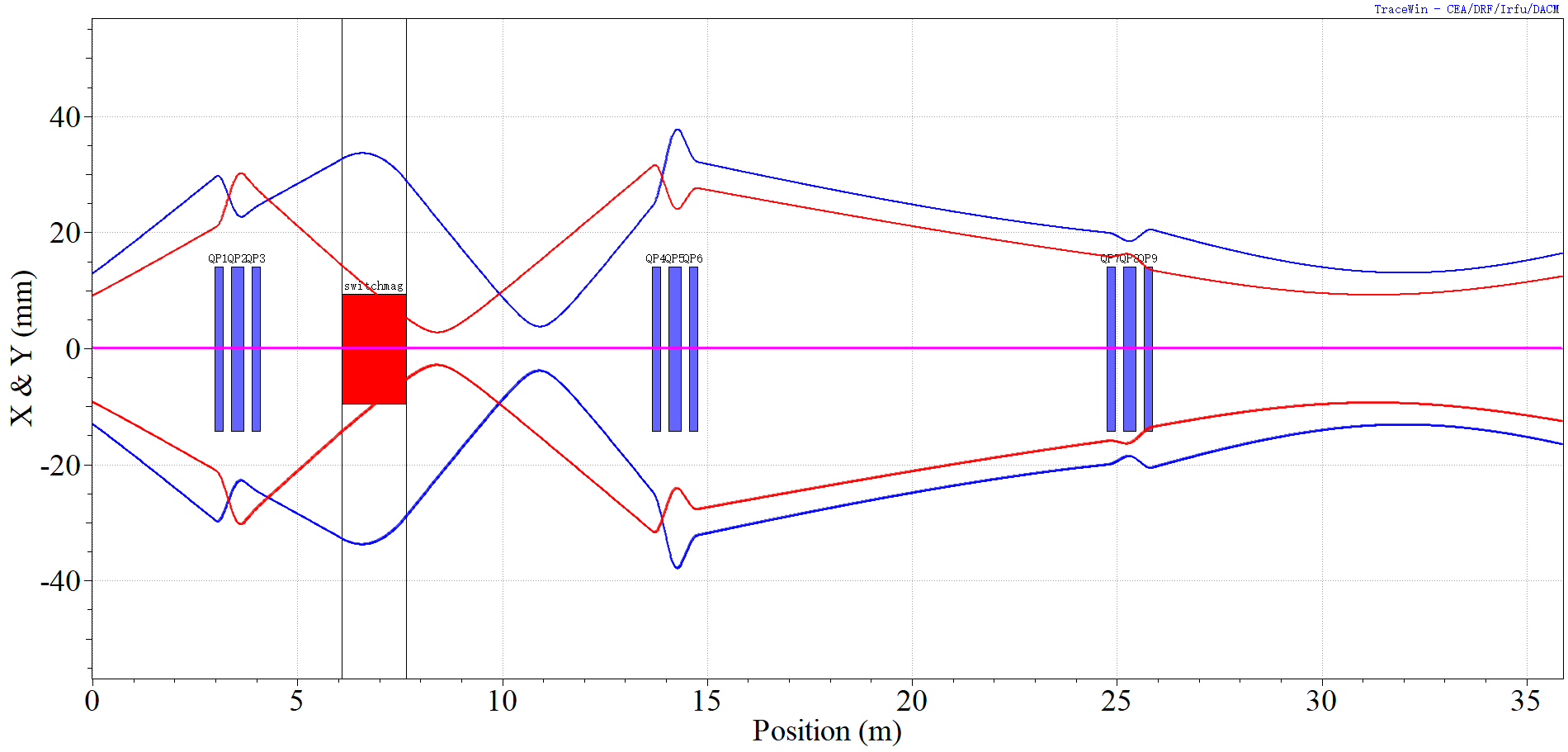

plot in envelope mode.png
plot in envelope mode.png (62 KiB) Viewed 6590 times
User avatar
FranceDidier
Administrator
Administrator
Posts: 984
Joined: Wed 26 Aug 2020 14:40
Country:
France (fr)
France

Re: Dose the envelope contain the dispersion effect?

Post by FranceDidier »

Dear Zhao,

The dispersion effect shown in the partran is due to input energy spread you have defined to 0.6 MeV. In envelope mode, your beam iis defined as CW, no spread can be considered.

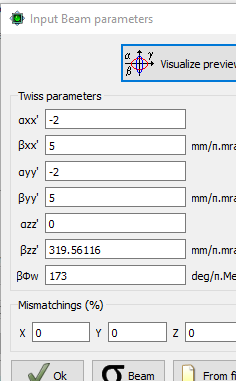

If you want to have something similar you have to defined beam like following picture. Its not exactly the same input energy spread, but by this way envelope and teacking will be the same.
Regards,

Didier
ChinaZhaoliangchao
Neophyte
Neophyte
Posts: 10
Joined: Sun 24 Oct 2021 06:25
Country:
China (cn)
China

Re: Dose the envelope contain the dispersion effect?

Post by ChinaZhaoliangchao »

So it is. Thank you.

Best regards
