Drop in longitudinal emittance in RFQ

https://www.dacm-logiciels.fr/tracewin
Post Reply
Belgiumjhustings
Novice
Novice
Posts: 2
Joined: Tue 24 Sep 2024 14:34
Country:
Belgium (be)
Belgium

Drop in longitudinal emittance in RFQ

Post by Belgiumjhustings »

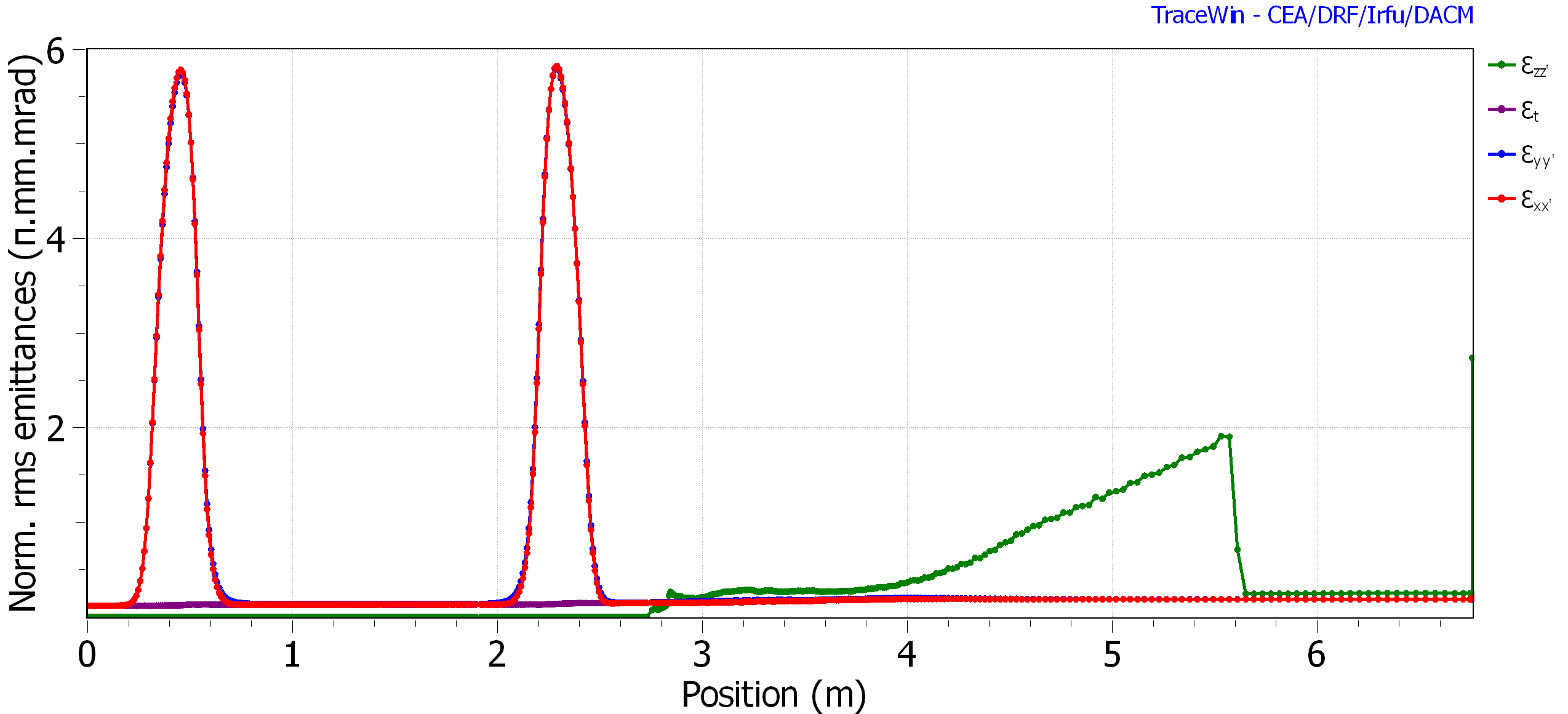

My simulation setup includes an ion source, a LEBT, and an RFQ. While running the simulation with Partran and Toutatis, I observed a discontinuity in the longitudinal emittance within the RFQ. Specifically, the emittance drops to a lower value midway through the RFQ and then recovers near the end. I have included a plot illustrating this behavior in the attachment. This phenomenon appears consistently in simulations involving 10,000 and 500,000 particles. However, when the simulation is run with only 1,000 particles, the discontinuity does not occur, and the emittance remains relatively low.

I am conducting these simulations using the Tracewin GUI on Windows, utilizing Toutatis. I included relevant files for the simulation with 10,000 particles.

Could you assist me in understanding the cause of this discrepancy?

Kind regards,
Jeroen
Attachments
Fieldmaps.zip
(217.16 MiB) Downloaded 9 times
i1is.ini
(43.77 KiB) Downloaded 7 times
i1is.dat
(24.37 KiB) Downloaded 10 times
i1is.cal
(383 Bytes) Downloaded 10 times
partran1.out
(370.38 KiB) Downloaded 7 times
User avatar
FranceDidier
Administrator
Administrator
Posts: 943
Joined: Wed 26 Aug 2020 14:40
Country:
France (fr)
France

Re: Drop in longitudinal emittance in RFQ

Post by FranceDidier »

Dear Jeroen,

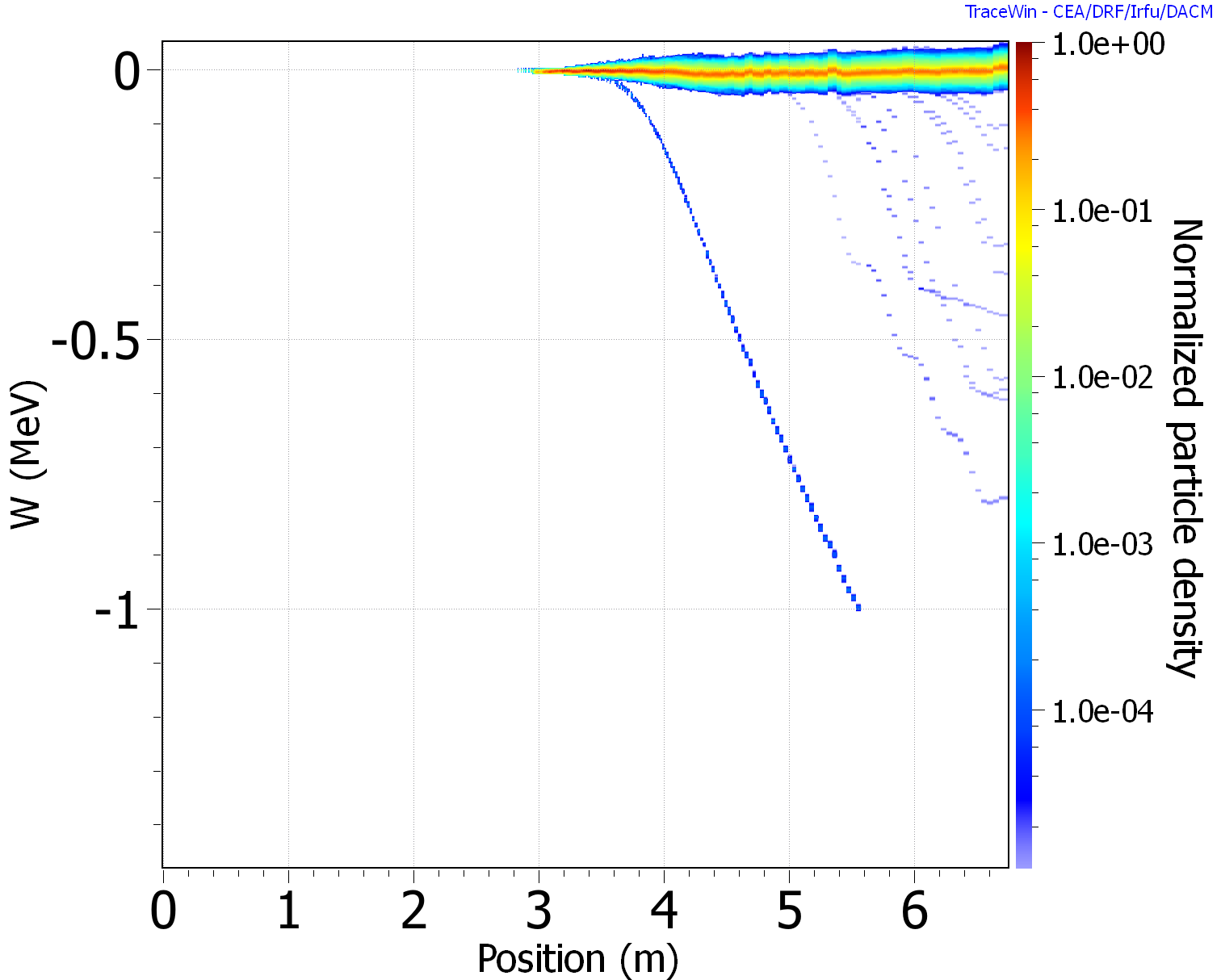

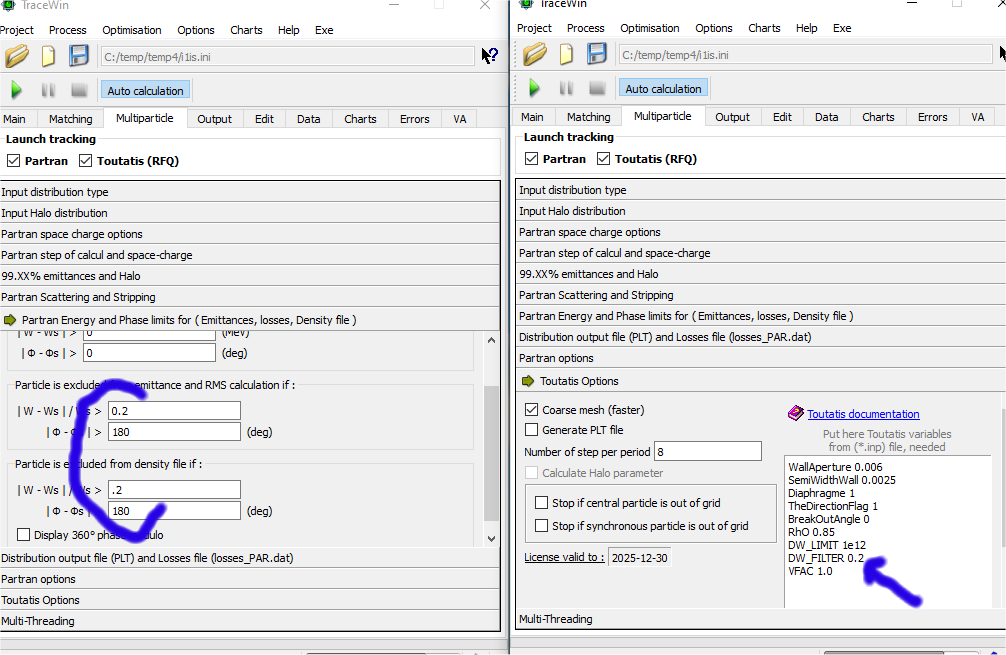

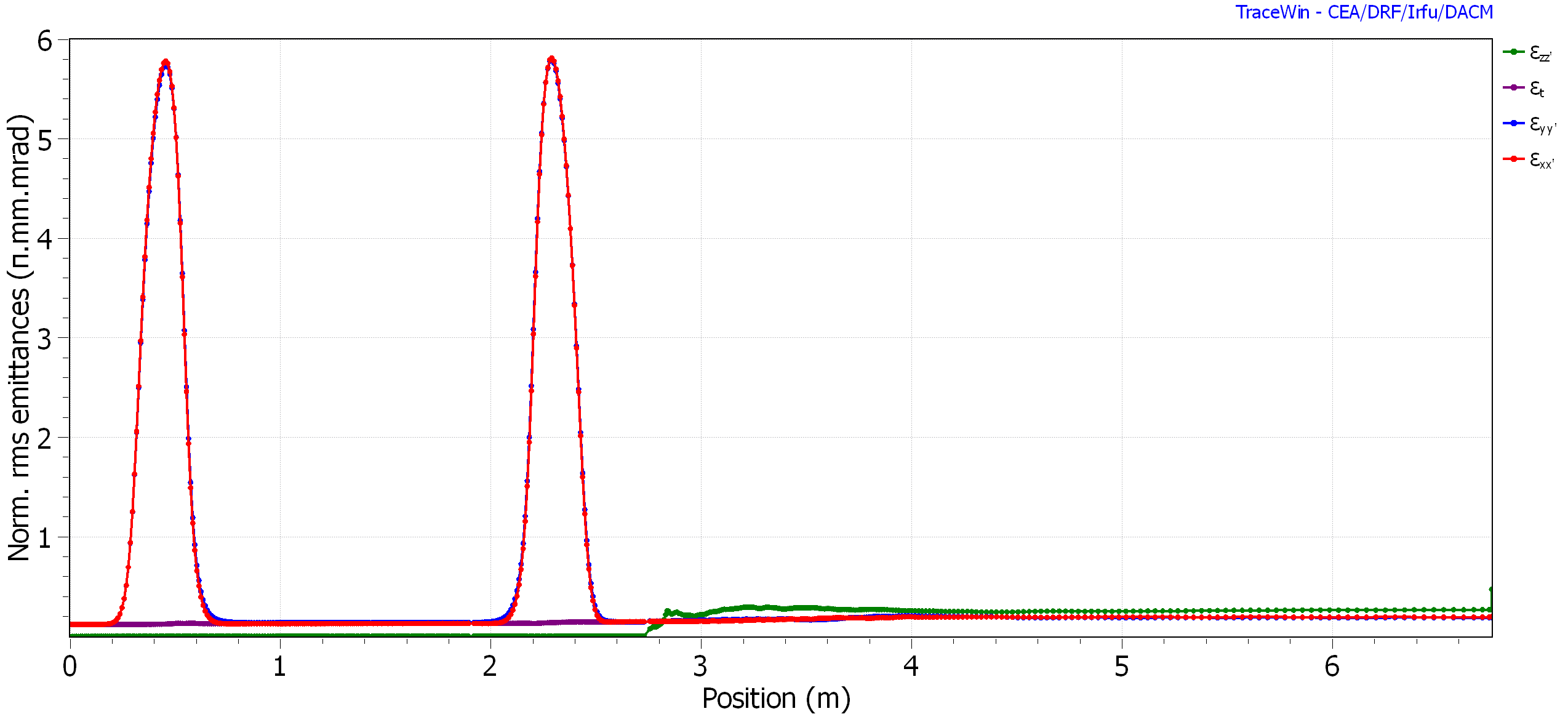

As can be seen from your simulation below, a certain number of particles are detached in energy, making the longitudinal emittance larger and larger, until one of them is lost on the wall of the RFQ, abruptly resetting the emittance to a lower value. To overcome this problem in calculating emittances, it is necessary to exclude particles above a certain ΔW, for partan and for Toutatis (see picture below). This corrects the display problem.

On the other hand, nothing to do with this problem, I noticed that you were using the ‘Use aperture element (Envelope)’ option. This option was causing code stability problems in the current version, I've fixed this in the latest version on the site

Regards,

Didier
Belgiumjhustings
Novice
Novice
Posts: 2
Joined: Tue 24 Sep 2024 14:34
Country:
Belgium (be)
Belgium

Re: Drop in longitudinal emittance in RFQ

Post by Belgiumjhustings »

Dear Didier,

Thank you so much for clearing this out for us. This really helped us understand the problem and improve our simulations.

Cheers,

Jeroen
